MAGBench: stable and precise connections
Connect ECUs and TCUs in a stable and accurate way in Boot, BDM and Jtag modes. MAGBench is the Magicmotorsport jig tool designed to make safe connections to the electronic units of vehicles.

Thanks to its patented upper panel and 56 positioning holes, you can also connect to the control units of heavy duty vehicles. An indispensable tool for your mechatronics workshop.

The base in which to place the electronic unit is LED lit, so you can work with greater precision and safety.

The top panel is equipped with an analog lifting mechanism. The eight probes are colored and coded like the reference cables to make it easier to connect to the ECUs in Bootloader mode.

The complete solution

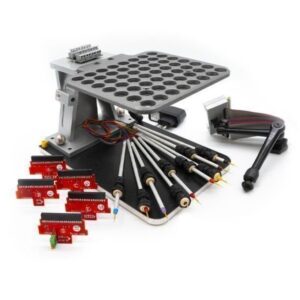

Kit Universal MAGBench FULL include:

FLK08This professional tool allows connection with any ECU thanks to its slotted top panel and pogo pin probes.
FLK04Adapter kit for BDM programming of Bosch, Siemens, Marelli and Delphi ECUs.
FLX4.10Articulating Arm for FLEXible Bench.
FLX4.10GThis adapter allows programming of vehicles from the Toyota group (including Denso 175822-xxx).

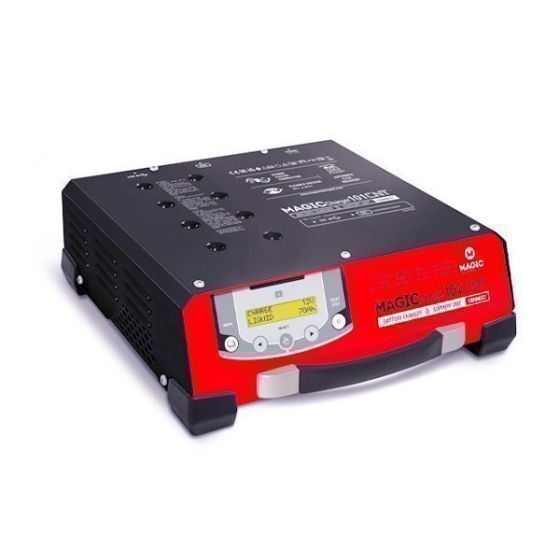

Magic Charger 101 CNT
